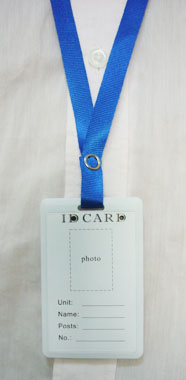

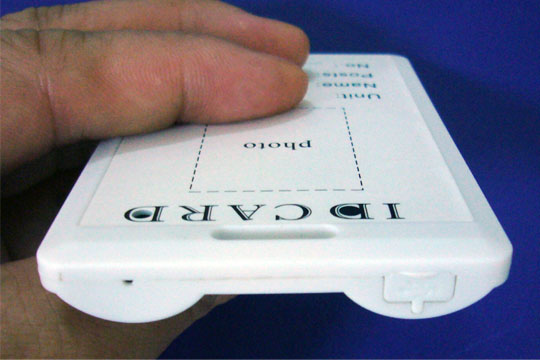

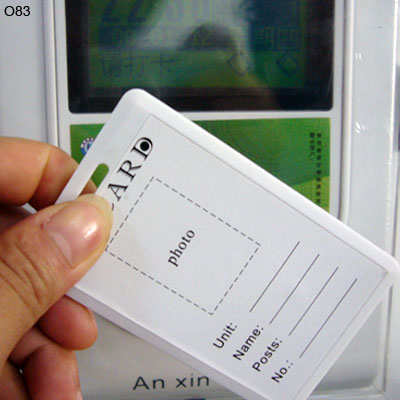

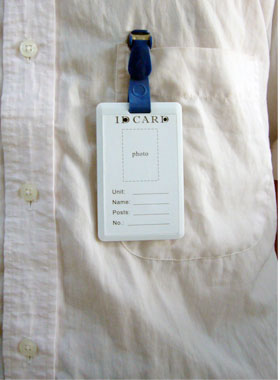

ID Card DVR with Camera

ID Card DVR with Camera
[SW-DVR-IDCARD]

$157.00

Feature

Technical parameters

Item	Unit	Specification
Image Sensor	inch	1/4 COMS
Physical Pixel Array	pixels	1.3million
Lens Mount	mm	2.8
View Angle	degree	70
Video Compression	Recording Format	H.263
Video Resolution	pixels	352*288
Recording Frame	fps	15
Photograph Resolution	pixels	1280*1024
Recording capacity based on AVI	MB/hour	200
Photograph capacity based on JPEG	KB/pcs	<200
Audio capacity based on WAV	MB/hour	60
Battery capacity	mAh	300
Charging time of battery	hour	2.5-3
Working time of battery (only in standby mode)	hour	>10
Working time of battery (only in video-recording mode)	hour	2-2.5
Working time of battery (only in audio-recording mode)	hour	4.5-5
Working time of battery (only in photographing mode)	piece	>100
Working Voltage	V	3.7
Charging Voltage	V	4.2-5
Video Consume current	mA	120
Photograph Consume current	mA	110
Audio Consume current	mA	60
standby current	mA	20
Weight	g	27
Operation Temperature	¡É/¡ÆF	25-40
Storage Temperature	¡É/¡ÆF	<50 >-10
Operation Humidity	RH	<70
Size	mm	86¡¿54¡¿5.3mm

Warranty: 3 months

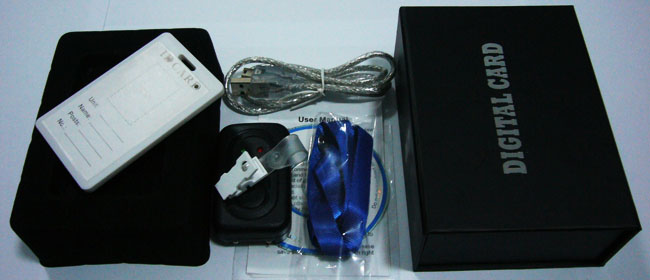

Package Contents>

ID Card Camera
Charger
USB cable
User manual
Strap
Clip
